PVC 非接触卡基材料




在线咨询

详细介绍


PVC 非接触卡基材料
Contactless IC Core Sheet
又称射频卡,它成功地解决了无源(卡中无电源)和免接触这一难题,是电子器件领域的一大突破。主要用于公交、社保、医疗、  轮渡、地铁的自动资费系统,也应用在门禁管理、身份证等和电子钱包。
Rf CARDS,and successfully solve it is no power source
(CARDS) and  avoid  contact with this  problem,is a breakthrough  of the field of electronic devices.Mainly used for         transportation,socialsecurity,medical,ferry,metro automatic   system,and   applicationin   treatment,id and gateway management  of electronic purse.

非接触卡介绍

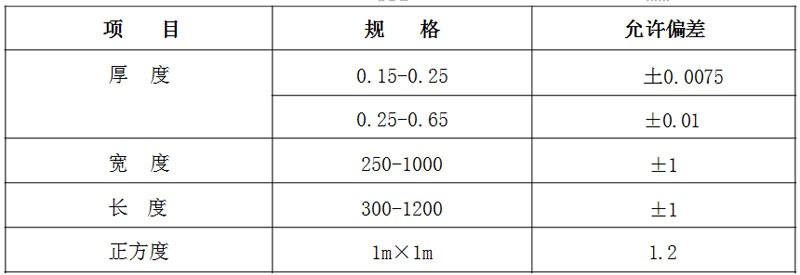

1.规格:非接触卡的厚度、宽度、长度尺寸误差应符合表1规定
表1 ( mm )

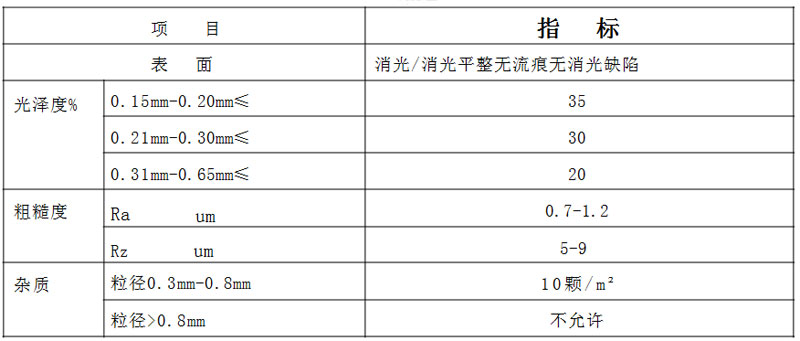

2.外观:印刷卡的外观指标应符合表2规定
表2 ( mm )

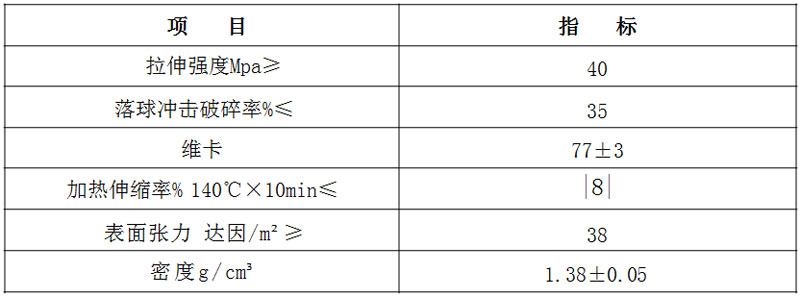

3.机械性能:印刷卡的机械性能指标应符合表3规定
表3 ( mm )
